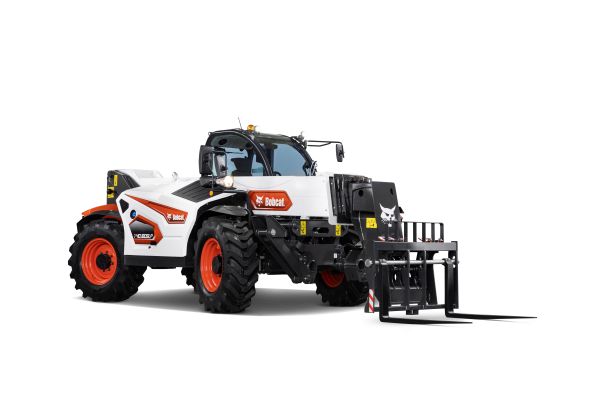

Bobcat T40.180SLP 75 IIIB

  • Last ned spesifikasjons-PDF for alle spesifikasjoner.

    Dokumenter:

    Spesifikasjoner

    Lifting height — on stabilisers
    17466.0 mm
    Lifting height — on tyres
    16200.0 mm
    Rated capacity
    4000 kg
    Capacity (at max. height on stabilisers)
    2500 kg
    Capacity (at max. height on tyres)
    1250 kg
    Capacity (at max. reach on stabilisers)
    560 kg
    Max. reach on tyres
    12800.0 mm
    Weight (unladen)
    10810 kg
    Standard tyres
    DUNLOP 400/80-24 156B T37
    1st gear / low range
    4.8 km/h
    1st gear / high range
    24.0 km/h
    Transmission
    Hydrostatic with electronic regulation
    Main drive
    Hydrostatic motor
    Engine Make / Model
    Bobcat D34
    Fuel
    Diesel
    Cooling
    Coolant
    Rated power (ISO 14396:2002) at 2400 RPM
    75.0 HP
    Rated power (ISO 14396:2002) at 2400 RPM
    55.2 kW
    Maximum torque at 1400 RPM
    325.0 Nm
    Number of cylinders
    4
    Displacement
    3.40 L
    Pump type
    Gear pump with LS valve
    Pump capacity
    80.00 L/min
    Relief valve pressure setting
    255.00 bar
    Lift time - no load
    15.8 s
    Lower time - no load
    9.9 s
    Telescope in time at max. reach - no load
    21.8 s
    Telescope in time at max. height - no load
    20.4 s
    Telescope out time at max. reach - no load
    36.5 s
    Telescope out time at max. height - no load
    36.5 s
    Engine braking
    Hydrostatic
    Parking and emergency brake
    Passive brake
    Fuel tank
    145.00 L
    Hydraulic reservoir
    76.00 L
    Operator noise level (LpA) (EN 12053)
    74 dB(A)
    Level of acoustic power (LWA)
    104 dB(A)
    Whole body vibration (EN 13059)
    1.20 ms-2
